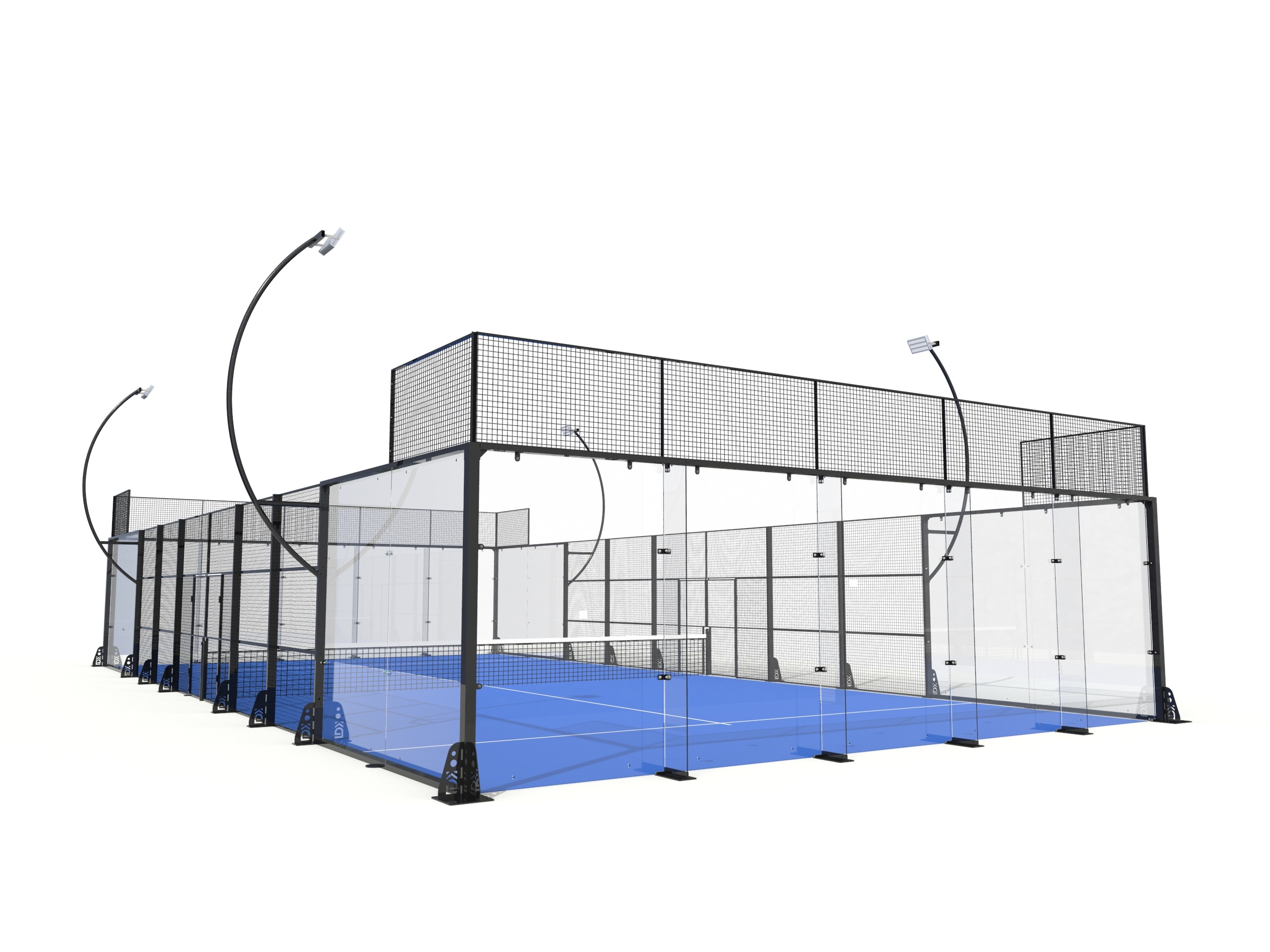

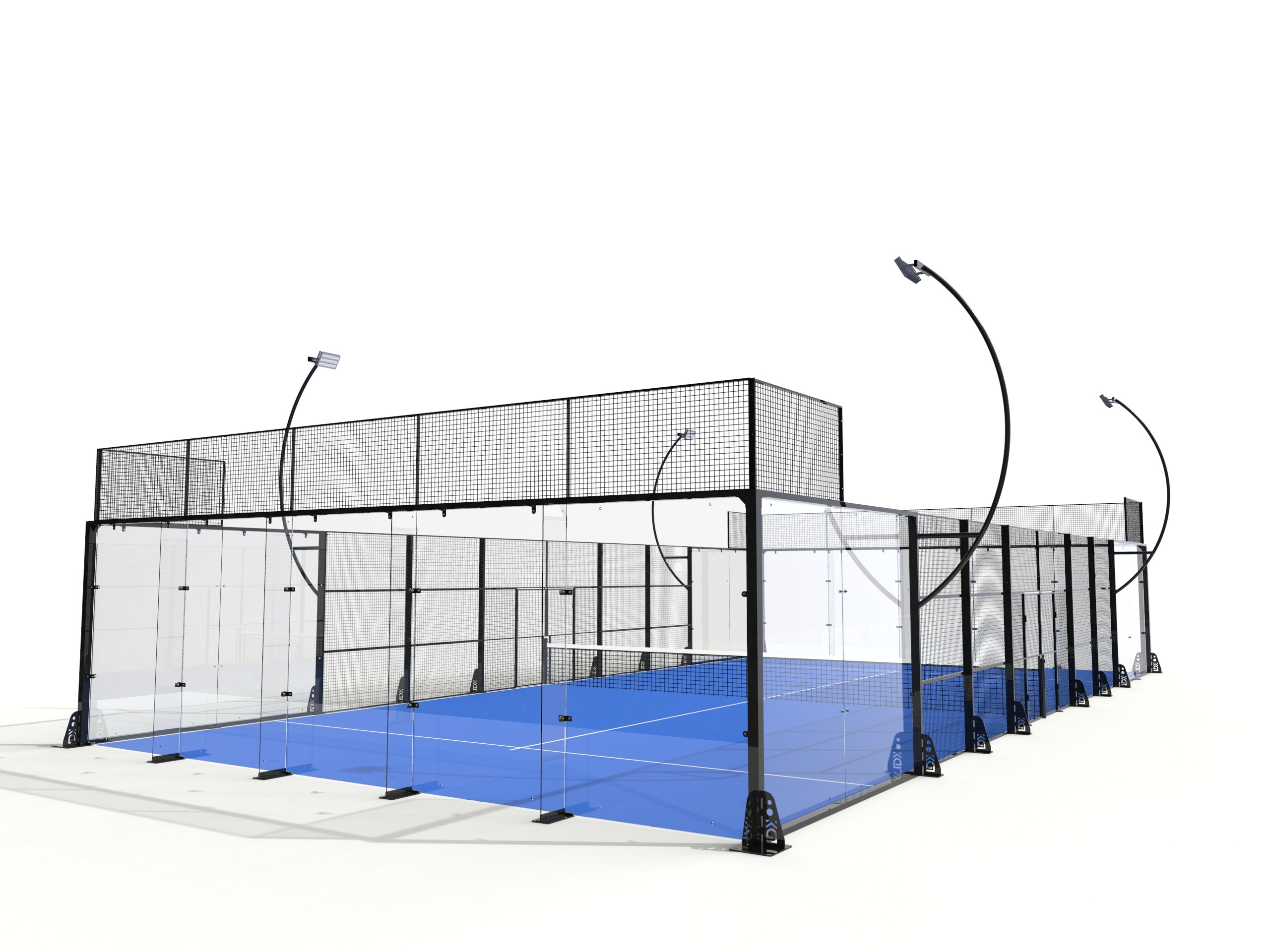

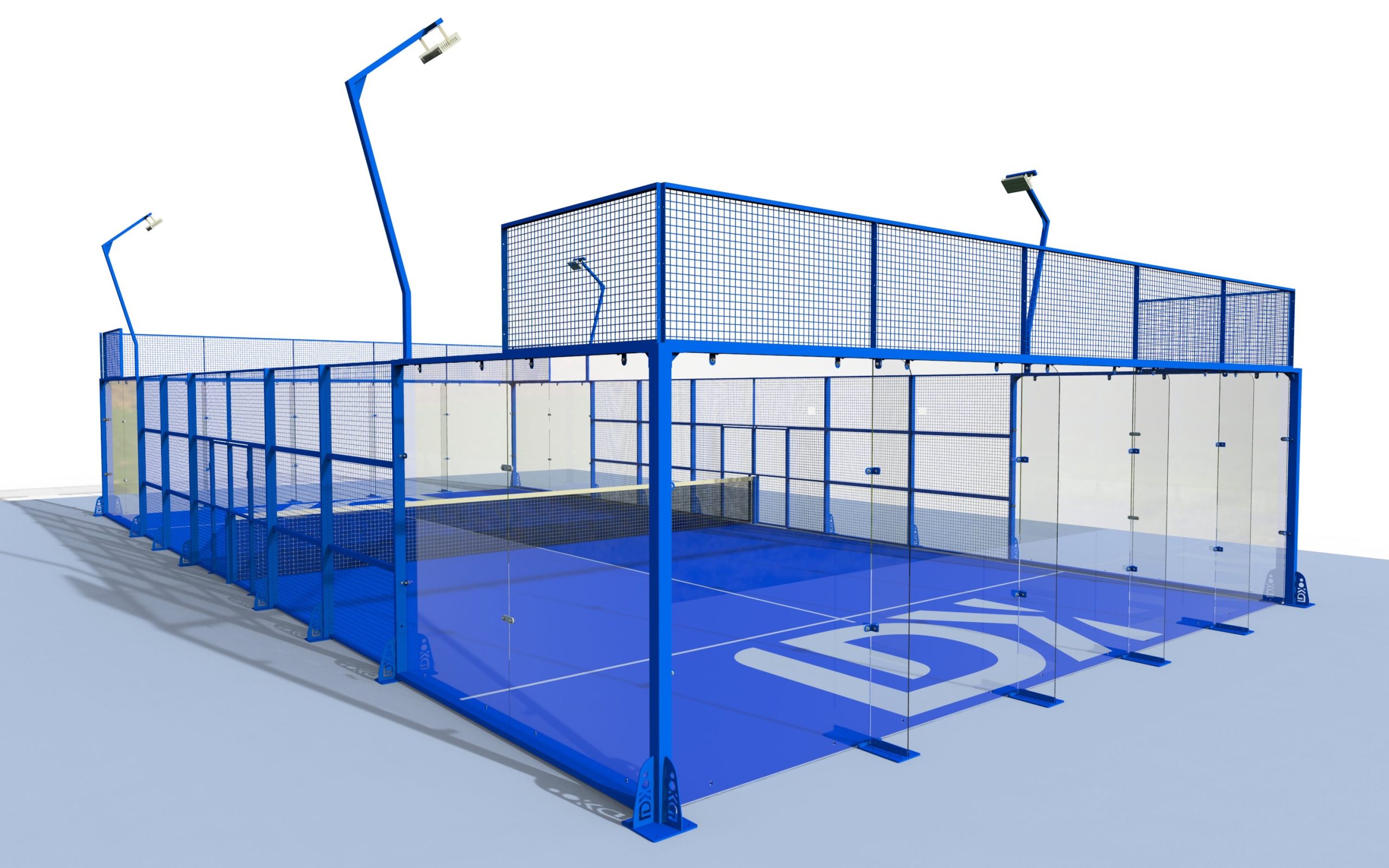

Glass Stud Type Padel Court 3C Certified Tempered Glass Countersunk Hole Glass Panel Sports Center Padel Facility
Basic Info
| Item | Specification |
|---|---|
| Glass Panel | 12mm Tempered Glass, 3C Certified, Impact Strength ≥2.5kJ/m² |
| Steel Frame | Q235 Hot-dip Galvanized Steel, Main Frame Thickness ≥3mm, Stiffener Spacing ≤1.5m |
| Coating Process | Electrostatic Polyester Powder Coating, Weather Resistance ≥WF2, Salt Spray Test ≥500 Hours |
| Court Surface | Professional Padel Artificial Turf/Plastic, Thickness 10-15mm, Anti-slip Coefficient ≥0.6 |
| Court Size | Standard 10m×20m (Supports 10m×18m/Custom Size) |
| Fence Height | 3m (Standard), Customizable 2.8m-3.2m |
| Warranty Period | 5 Years for Glass/Frame, 3 Years for Surface, Lifetime Maintenance for Structure |
| Applicable Environment | Outdoor/Semi-outdoor, Adaptable to -20℃~60℃, Rainproof, Sunscreen and Corrosion-resistant |
| Installation Cycle | 7-10 Working Days for Standard Court (Excluding Transportation Time) |
We offer full customization based on your needs:
Size & Structure: Adjust the canopy’s span, height, and frame density according to the standard (20m×10m) or non-standard padel court dimensions, ensuring it covers the entire court area (including the surrounding buffer zones) without affecting court functionality.
Color & Material: Choose from weather-resistant colors (e.g., neutral gray, dark blue, or customized brand colors) to match venue aesthetics; the canopy fabric is made of high-density, UV-resistant polyester or PVC, with anti-fading and anti-aging properties to withstand long-term outdoor exposure (rain, strong sunlight, wind).
Functional Add-ons: Optional features include wind-resistant reinforcement (for coastal or high-wind areas), rainwater drainage systems (to prevent water accumulation on the canopy surface), and translucent fabric (to maintain natural lighting while reducing glare, ideal for all-day training).
